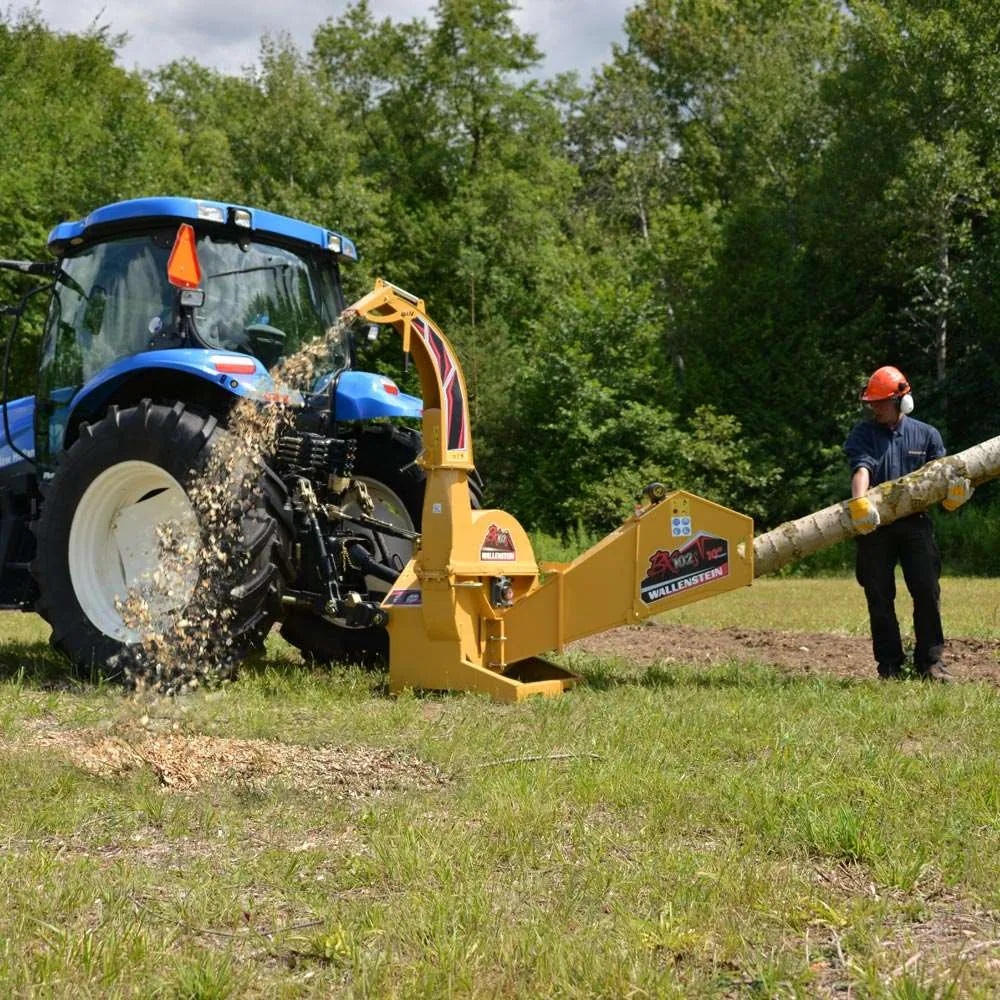

Wallenstein BX102S 10-inch PTO Woodchipper Review (2026)
10-inch gravity-feed flagship PTO chipper on a 36-inch rotor with 400 lb flywheel mass. Cat II hitch, 80–120 HP utility-tractor range.
Chip It Right is reader-supported. When you buy through links on this site, we may earn an affiliate commission at no extra cost to you. Our editorial recommendations are never influenced by affiliate relationships — we recommend the best product for your situation, whether or not it pays us.
- Largest PTO gravity-feed chipper we cover (10-inch)
- 400 lb flywheel is the heaviest in the Wallenstein lineup
- 5-year warranty
- Cat II hitch + iMatch compatibility
- Requires 80+ HP utility tractor — rules out all compact tractors
- Gravity feed (not hydraulic) — hand-fed material at this size is heavy
- $9,240 is above the Woodmaxx MX-9900 (9-inch hydraulic feed) at similar capacity
Who actually buys a 10-inch PTO gravity-feed chipper
The BX102S is built for owners of 80 to 120 HP utility tractors with a Cat II three-point hitch and 540 or 1000 RPM PTO. That's not a homestead tractor. It's a working farm, an estate manager, or a small commercial property crew running something like a Kubota M-series, John Deere 5-Series, or Massey 4700. Below 65 HP the 36-inch 400 lb flywheel struggles to recover after a hardwood bite, and the 10-inch throat is wasted capacity.
The other half of the fit question is feed preference. Gravity feed means there is no hydraulic infeed roller, no hoses, and no separate feed control. Branches drop in and the rotor pulls them. People who've run BX-series chippers for a decade swear by the simplicity. People who've grown up on hydraulic feed find the lack of speed control and the occasional hand-feeding required for crooked or forked limbs frustrating. If you already own a Wallenstein BX52S or BX72S and you're stepping up, the BX102S behaves the same way, just bigger.
BX102S vs Woodmaxx MX-9900: the real cross-shop
The Woodmaxx MX-9900 is the obvious alternative and the closer call than most buyers realize. The MX-9900 is 9-inch hydraulic feed at $7,350 with a 7-year warranty and a 40 to 100 HP requirement. The BX102S is 10-inch gravity feed at $9,240 with a 5-year consumer warranty and 80-plus HP requirement. The Wallenstein costs $1,890 more, demands a bigger tractor, and gives up hydraulic feed in exchange for one extra inch of capacity.
If your tractor is in the 40 to 80 HP range, the decision is made for you: the MX-9900. If you're already at 80 HP or higher and you genuinely have 9 to 10 inch material, the BX102S earns its premium because the MX-9900 will choke on consistent 9-inch feedstock. The honest middle case is 80-plus HP tractor owners with mostly 6 to 8 inch material. Those buyers usually pick the MX-9900 anyway because hydraulic feed is less work, and they accept the rare oversize limb gets the chainsaw.
The ceiling: when you skip past Wallenstein entirely
Above the BX102S is the dealer-network commercial tier. Vermeer BC900XL and Bandit M-Series start around $15,000 to $18,000, run their own engines (no PTO required), feature hydraulic feed with anti-kickback bars, and are spec'd for daily commercial use. That's a different buyer: tree services, municipal crews, full-time land-clearing operators. If you're chipping more than 20 hours a month or hauling between job sites, the BX102S is undersized for the duty cycle even if the capacity matches.
The BX102S occupies a real but narrow band: the largest PTO-driven, tractor-mounted chipper you can buy without stepping into self-powered commercial gear. If you need 10-inch capacity and you have the tractor, it's the only credible answer under $10,000.
What the spec sheet doesn't tell you
The 1,143 lb total weight matters when you're hooking up. A Cat II hitch handles it fine, but moving the unit around without the tractor is a forklift job. The folding hopper helps for transport and storage but the chipper still has a roughly 6-foot footprint deployed.
Built by EMB Manufacturing in Ontario, Canada, the BX-series has a long service history and a parts network that runs through Wallenstein dealers. That's a real advantage over the Woodmaxx direct-ship model if you want a local relationship for warranty work, but it can mean dealer markup and longer waits for non-stocking items.
What's in the box
- BX102S chipper unit
- PTO shaft with shear pin (540 RPM)
- Blade set (2 knives, installed)
- 3-point hitch pins (Cat II)
- Assembly hardware
- Discharge chute with 360-degree rotation
- Folding hopper (installed)
- Operator manual
- Tractor (80–120 HP with 540 RPM PTO)
- Quick-hitch adapter (Cat II)
- Ear protection and safety glasses
Sold through Wallenstein dealers. At 1,143 lb, verify your tractor's 3-point hitch lift capacity before ordering. Cat II hitch only — Cat I tractors are undersized for this unit.
Wallenstein BX102S 10-inch PTO Woodchipper specs at a glance
- Brand
- Wallenstein
- Model
- BX102S
- Power type
- pto
- Max branch diameter
- 10"
- Power
- PTO-driven, 80–120 HP tractor
- Feed system
- Mechanical self-feeding
- Flywheel weight
- 400 lb
- Weight
- 1143 lb
- Price (MSRP)
- $9,240
- Warranty
- 5 years
Will the BX102S fit my tractor?
The Wallenstein BX102S 10-inch PTO Woodchipper needs 80–120 PTO HP. Here’s how 26 common compact and utility tractors match up — rated PTO HP, not engine HP (after typical 10–15% drivetrain losses).
| Tractor | Engine HP | PTO HP | Hitch | BX102S verdict |
|---|---|---|---|---|
| Kubota BX23S | 22 | 15 | Cat 1 | Too small |
| Kubota LX2610 | 25 | 19 | Cat 1 | Too small |
| Kubota L2501 | 24 | 19 | Cat 1 | Too small |
| Kubota L3301 | 33 | 26 | Cat 1 | Too small |
| Kubota L3901 | 37 | 30 | Cat 1 | Too small |
| Kubota L4701 | 47 | 38 | Cat 1 | Too small |
| Kubota MX5400 | 55 | 45 | Cat 2 | Too small |
| Kubota M4-071 | 70 | 58 | Cat 2 | Too small |
| John Deere 1025R | 24 | 18 | Cat 1 | Too small |
| John Deere 2025R | 25 | 19 | Cat 1 | Too small |
| John Deere 3025E | 24.7 | 19 | Cat 1 | Too small |
| John Deere 3032E | 32 | 25 | Cat 1 | Too small |
| John Deere 3039R | 38.2 | 30 | Cat 1 | Too small |
| John Deere 3046R | 45.3 | 37 | Cat 1 | Too small |
| John Deere 4044M | 43.1 | 35 | Cat 1 | Too small |
| John Deere 4066R | 65.9 | 53 | Cat 2 | Too small |
| Mahindra 1533 | 33 | 26 | Cat 1 | Too small |
| Mahindra 2638 HST | 37.4 | 29 | Cat 1 | Too small |
| Massey Ferguson 1735M | 35 | 28 | Cat 1 | Too small |
| Massey Ferguson 2705E | 49 | 40 | Cat 2 | Too small |
| New Holland WORKMASTER 25S | 24.7 | 18 | Cat 1 | Too small |
| New Holland WORKMASTER 35 | 35 | 28 | Cat 1 | Too small |
| Kioti CK2620 | 24.5 | 20 | Cat 1 | Too small |
| Kioti NX4510 | 45 | 38 | Cat 1 | Too small |
| LS MT225S | 24.4 | 18 | Cat 1 | Too small |
| LS MT342 | 41.3 | 32 | Cat 1 | Too small |
“Fits” = within the manufacturer’s rated PTO HP range. “At limit” = below the minimum by 5–15%, will feel underpowered on seasoned hardwood. “Too small” = undersized for reliable chipping. “Oversized” = above range (works but overkill).
Who should buy the BX102S — and who should skip it
- You own an 80 to 120 HP utility tractor with a Cat II hitch and want maximum capacity per PTO dollar
- You regularly clear 8 to 10 inch hardwood and a 9-inch hydraulic feed chipper would choke on it
- You prefer the mechanical simplicity of gravity feed and have run Wallenstein BX-series equipment before
- You want a local Wallenstein dealer for parts and service rather than a direct-ship relationship
- You need a 1000 RPM PTO option for sustained chipping on larger material
- You want the largest PTO chipper available without stepping up to self-powered commercial gear at $15K plus
- Your property has the storage and transport room for a 1,143 lb implement
- Your tractor is under 65 HP or Cat I only — the BX72S or a Woodmaxx WM-8H is a better fit
- You'd rather have hydraulic feed at 9-inch capacity for $1,890 less — the Woodmaxx MX-9900 is the answer
- You're chipping more than 20 hours a month or running commercial jobs — step up to Vermeer BC900XL or Bandit M-Series
- You don't have a Wallenstein dealer within reasonable driving distance for parts and service
- Most of your material is under 6 inches — you're paying for capacity you'll rarely use
Alternatives to the BX102S
$1,890 less. 9-inch capacity (1 inch smaller). adds hydraulic feed. 7-year warranty. from Woodmaxx.
$5,550 less. 8-inch capacity (2 inch smaller). 3-year warranty. from Woodmaxx.
$5,145 less. 8-inch capacity (2 inch smaller). adds hydraulic feed. 3-year warranty. from Woodmaxx.
BX102Saccessories & add-ons
Set of 2 heavy-duty replacement knives for the BX102S. Order through your Wallenstein dealer.
Heavy-duty PTO shaft shear pins for the 80–120 HP drive system.
Cat II quick-hitch adapter. Required if your tractor uses a quick-hitch system.
Heavy-duty PTO shaft rated for 80–120 HP with wide-angle CV joints.
Bundle: replacement blade set and 10-pack of shear pins. Recommended for commercial-volume use.
BX102S — frequently asked questions
- What size tractor do I need to run the BX102S?
- Wallenstein rates it for 65 to 150 HP tractors with full 10-inch capacity requiring 90 to 120 HP at the PTO. Realistically, plan on 80 HP minimum if you want to chip 8 to 10 inch hardwood without bogging the flywheel. The hitch is Cat I and Cat II compatible.
- Is gravity feed a dealbreaker compared to hydraulic feed?
- Not for everyone. Gravity feed has fewer parts to maintain and no hydraulic lag, and it works fine on straight limbs. The downsides are no infeed speed control, no reverse, and occasional manual feeding for forked or crooked branches. If you've never run a chipper, hydraulic feed is more forgiving.
- What's the warranty?
- We found conflicting warranty terms during our research — Wallenstein's BX-Series has historically been marketed as a 5-year consumer warranty (2-year commercial), but at least one current Wallenstein product page on the BX102S lists 3-year consumer / 2-year commercial. Sister-model pages (BX52S, BX72S, BX36S) still show 5-year. We default to 5-year consumer here based on the broader brand documentation, but call Wallenstein or your dealer to confirm the exact terms in writing before you buy — particularly for the BX102S, which appears to be on different terms than the smaller BX models. Either way, the warranty is shorter than the Woodmaxx MX-9900's 7-year transferable coverage.
- Can I use this with a quick hitch?
- Yes. The BX102S is iMatch and quick-hitch compatible on Cat II hitches, which makes mounting and dismounting straightforward on modern utility tractors.
- Does it need a 1000 RPM PTO or will 540 work?
- The BX102S accepts both 540 and 1000 RPM PTO. The 1000 RPM input gives you more sustained chipping power on continuous 8-plus inch material, but 540 is fine for occasional larger work.
- How does it compare to a self-powered tow-behind chipper like a Vermeer BC900XL?
- Different category. The Vermeer has its own engine, hydraulic feed with safety bars, and is built for commercial duty cycles, but it starts around $15,000 plus. The BX102S leans on your tractor's PTO and costs roughly $9,240. Choose the BX102S if you already own the tractor and chip occasionally. Step up to Vermeer or Bandit if chipping is a daily job.
- BX102S vs bandit chipper — which should I buy?
- See our head-to-head comparison for the detailed breakdown. In short: the BX102S at $9,240 offers 10-inch capacity with mechanical self- feed. The right pick depends on your tractor HP, branch size, and whether you need hydraulic feed for forked material.
- How much HP do I need to run the BX102S?
- The BX102S needs 80–120 PTO HP. That's PTO horsepower (roughly 85–90% of engine HP). A 92 HP engine tractor produces about 80 PTO HP. Comfortable range: 100–108 PTO HP.
- What warranty does the BX102S come with?
- Wallenstein covers the BX102S with a 5-year warranty. Covers manufacturing defects; excludes wearing parts and cosmetic damage.
- What can the BX102S actually chip in real-world use?
- Rated for 10-inch branches. In practice, green softwood chips reliably at rated max. Seasoned hardwood at 10 inches slows the feed rate and bogs the flywheel on knots — comfortable working capacity on hardwood is 8.5–9.5 inches. The mechanical feed handles straight material well but can stall on forked branches.
- Is the BX102S worth buying?
- At $9,240, the BX102S is the premium/commercial tier — justified only for high-volume use or buyers who need max capacity. The 5-year warranty provides strong long-term protection.
